Graph point processes

Hard core graph

PartialRejectionSampling.HardCoreGraph — Type
HardCoreGraph{T<:Integer} <: AbstractGraphPointProcess{T}

Concrete type representing a point process on the vertices of a graph $=(V, E)$ parametrized by $\beta \geq 0$ which characterizes the distribution on the independent sets of graph, where each vertex is present with marginal probability $\frac{\beta}{1+\beta}$.

In other words, it can also be viewed as the product distribution $\operatorname{Bernoulli}(\frac{\beta}{1+\beta})^{\otimes |V|}$ on the vertices of graph conditioned on forming an independent set,

\[ \mathbb{P}\!\left[ \mathcal{X} = X \right] \propto \prod_{x\in X} \frac{\beta}{1+\beta} 1_{X \text{forms an independent set}}.\]

See also

Example

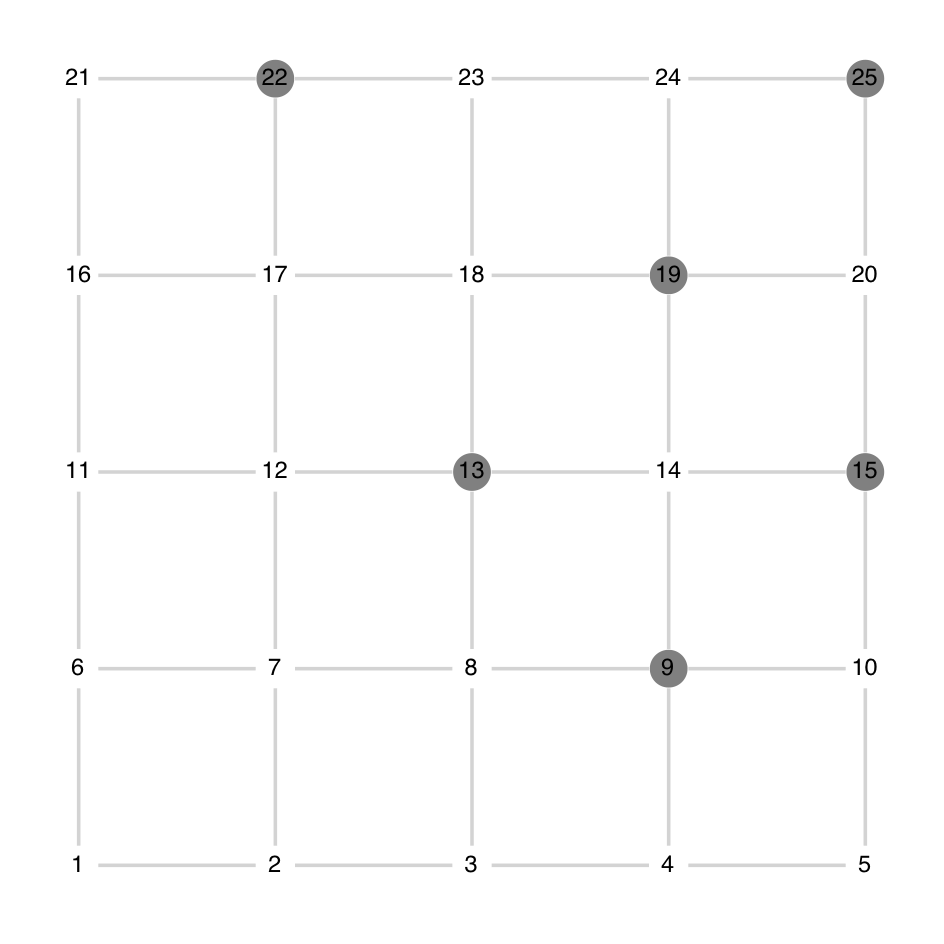

A realization from a $5\times 5$ grid graph, with $\beta = 0.5$.

assets/hard_core_graph.png

source
PartialRejectionSampling.HardCoreGraph — Method
HardCoreGraph(
    graph::LG.SimpleGraph{T},
    β::Real
) where {T<:Integer}

Construct a PRS.HardCoreGraph.

using PartialRejectionSampling
using LightGraphs; const LG = LightGraphs

g, β = LG.grid([5, 5]), 1
PRS.HardCoreGraph(g, β)

# output

HardCoreGraph{Int64}
- graph = {25, 40} undirected simple Int64 graph
- β = 1.0
source
PartialRejectionSampling.generate_sample_prs — Method
generate_sample_prs(
    [rng=Random.AbstractRNG,]
    pp::HardCoreGraph{T}
)::Vector{T} where {T}

Sample from PRS.HardCoreGraph using Partial Rejection Sampling (PRS), see Section 7.2 of Heng Guo , Mark Jerrum , Jingcheng Liu (2019)

See also

Example

An illustration of the procedure on a $5\times 5$ grid graph.

  • red: variables involved in constraints violation (gray neighboring nodes)
  • orange: variables to be resampled (red nodes and their neighborhood)

assets/hard_core_graph.gif

source

Rooted spanning forests

PartialRejectionSampling.RootedSpanningForest — Type
RootedSpanningForest{T<:LG.SimpleDiGraph{Int64}} <: AbstractGraphPointProcess{T}

Concrete type reprensenting a point process defined on the edges of a connected graph characterizing the uniform distribution on the directed spanning forests of graph rooted at roots.

It can be viewed as a the product distribution of the uniform distribution on the set of neighbors of each vertex conditioned on forming no cycles.

The object has two fields:

  • graph::LG.SimpleGraph{Int64}
  • roots::Vector{Int64}

See also

Example

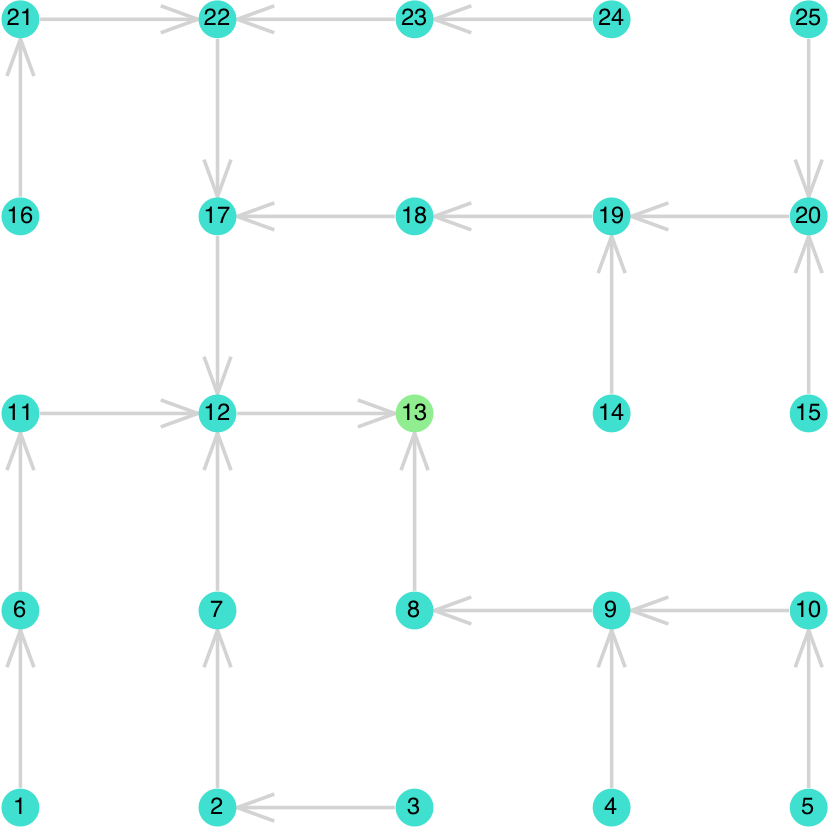

A realization from a $5\times 5$ grid graph with roots=[13].

assets/rooted_spanning_tree.png

source
PartialRejectionSampling.RootedSpanningForest — Method
RootedSpanningForest(
    graph::LG.SimpleGraph{T},
    roots::Union{Nothing,T,AbstractVector{T},AbstractSet{T}}=nothing
) where {T<:Int}

Construct a PRS.RootedSpanningForest model on a connected graph, rooted at roots. If roots === nothing, a random vertex is selected uniformly at random among LG.vertices(g) and considered as roots.

using PartialRejectionSampling
using LightGraphs; const LG = LightGraphs

g, roots = LG.grid([5, 5]), [1, 2, 3]

rsf = PRS.RootedSpanningForest(g, roots)

# output

RootedSpanningForest{LightGraphs.SimpleGraphs.SimpleDiGraph{Int64}}
- graph = {25, 40} undirected simple Int64 graph
- roots = [1, 2, 3]
source
PartialRejectionSampling.generate_sample_prs — Method
generate_sample_prs(
    [rng::Random.AbstractRNG,]
    pp::RootedSpanningForest{T}
)::T where {T<:LG.SimpleDiGraph{Int64}}

Generate a rooted spanning forest of pp.graphwith prescribedpp.roots, uniformly at random among all rooted spanning forests rooted atpp.roots`, using Partial Rejection Sampling (PRS).

See also

Example

An illustration of the procedure on a $5\times 5$ grid graph, with roots=[13]

  • red: variables involved in constraints violation (edges forming a cycle)
  • orange: variables resampled (edges originating from a red/orange node)

assets/rooted_spanning_tree_prs.gif

source

Sink free graph

PartialRejectionSampling.SinkFreeGraph — Method
SinkFreeGraph(graph::LG.SimpleGraph{T}) where {T<:Int}

Construct a PRS.SinkFreeGraph.

using PartialRejectionSampling
using LightGraphs; const LG = LightGraphs

sfg = PRS.SinkFreeGraph(LG.grid([5, 5]))

# output

SinkFreeGraph{LightGraphs.SimpleGraphs.SimpleDiGraph{Int64}}
- graph = {25, 40} undirected simple Int64 graph
source
PartialRejectionSampling.generate_sample_prs — Method
generate_sample_prs(
    [rng::Random.AbstractRNG,]
    pp::SinkFreeGraph{T}
)::T where {T}

Generate an orientated version of pp.graph uniformly at random among all possible orientations conditioned on the absence of sinks, using Partial Rejection Sampling (PRS).

See also

Example

A illustration of the procedure on a $5 \times 5$ grid grah.

  • red: variables involved in constraints violation (orientation of the edges pointing to a sink node)
  • orange: variables resampled (orientation of the previous edges)

assets/sink_free_graph_prs.gif

source

Ising model

PartialRejectionSampling.Ising — Type
Ising{T<:Int} <: AbstractGraphPointProcess{T}

The Ising model characterizes a point process defined on the vertices of a graph $(V, E)$ with joint density proportional to

\[ \mathbb{P}\!\left[ \mathcal{X}=X \right] \propto \prod_{i \in V} \exp(h_i x_i) \prod_{\{i, j\} \in E} \exp(J x_i x_j)\]

where $(h_i)_{i\in V}$ are called magnetization paremeters and $J$ the interaction coefficient ($J \gtreqless 0$ characterizes ferro/antiferro magnetic interactions).

Example

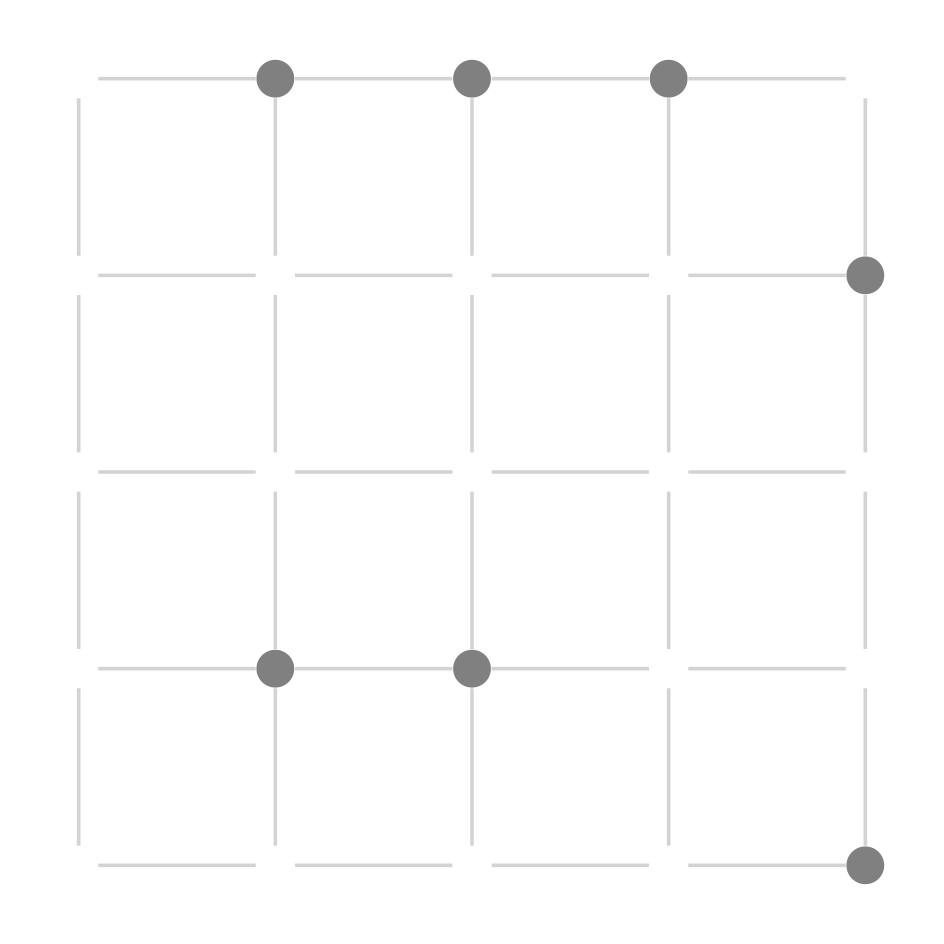

A realization from a $5\times 5$ grid graph, with $h = 0.2, J = 0.1$.

assets/ising_grid_prs.png

source
PartialRejectionSampling.Ising — Method
Ising(
    dims::Vector{T},
    J::Real,
    h::Union{Real,Vector{Real}}=0;
    periodic::Bool=true
) where {T<:Int}

Construct PRS.Ising on a grid graph with dimension dims, interaction parameter J and magnetization h.

Periodic boundary conditions on the grid graph are set according to periodic.

using PartialRejectionSampling

dims = [5, 5]
J, h = 0.01, 0
PRS.Ising(dims, J, h; periodic=true)

# output

Ising{Int64}
- graph = {25, 50} undirected simple Int64 graph
- J = 0.01 (interaction)
- h = 0.0 (magnetization)
source
PartialRejectionSampling.Ising — Method
Ising(
    graph::LG.SimpleGraph{T},
    J::Real,
    h::Union{Real,Vector{Real}}=0
) where {T<:Int}

Construct PRS.Ising on graph with interaction parameter J and magnetization h.

using PartialRejectionSampling
using LightGraphs; const LG = LightGraphs

graph = LG.grid([5, 5])
J, h = 0.01, 0
PRS.Ising(graph, J, h)

# output

Ising{Int64}
- graph = {25, 40} undirected simple Int64 graph
- J = 0.01 (interaction)
- h = 0.0 (magnetization)
source
PartialRejectionSampling.generate_sample! — Method
generate_sample!(
    rng::Random.AbstractRNG,
    state::AbstractVector{T},
    indices,
    ising::Ising{T}
) where {T<:Int}

Generate an exact sample from the marginal distribution of each states of the PRS.Ising model ising at the prescribed indices.

source
PartialRejectionSampling.generate_sample — Method
generate_sample(
    [rng::Random.AbstractRNG,]
    pp::Ising{T},
    idx::T
)::T where {T<:Int}

Generate an exact sample from the marginal distribution of state $i=$ idx of pp.

More specifically,

\[ x_i \sim \operatorname{Bernoulli}_{-1, 1} (\sigma(h_i)),\]

where $\sigma$ denotes the sigmoid function.

source
PartialRejectionSampling.generate_sample_conditional! — Method
generate_sample_conditional!(
    rng::Random.AbstractRNG,
    state::AbstractVector{T},
    i::T,
    ising::Ising{T}
) where {T<:Int}

Generate an exact sample from the conditional distribution of the state $x_i$ given its neighboring states in ising.graph. More specifically,

\[ x_i \mid x_{N(i)} \sim \operatorname{Bernoulli}_{-1, 1} (\sigma(h_i + J \sum_{j \in N(i)} x_j)), where ``\sigma`` denotes the [sigmoid function](https://en.wikipedia.org/wiki/Sigmoid_function).\]

source
